JIC Bulkhead Union Branch Tee with Locknut
Ningbo NJ Hydraulic Adapter Co., Ltd is the professional manufacturer of steel & stainless steel sae hydraulic fittings and adapters, including british and metric fittings. Most of sae hydraulic fittings are in stock, so we can deliver stock orders within 7-15 working days, and we can also provide several free samples for testing before a trial order.
Ningbo Nj Hydraulic Adapter Co., Ltd is one of the leading jic bulkhead union branch tee with locknut manufacturers and suppliers in China. Welcome to wholesale high quality products in stock here from our factory. Contact us for more details.

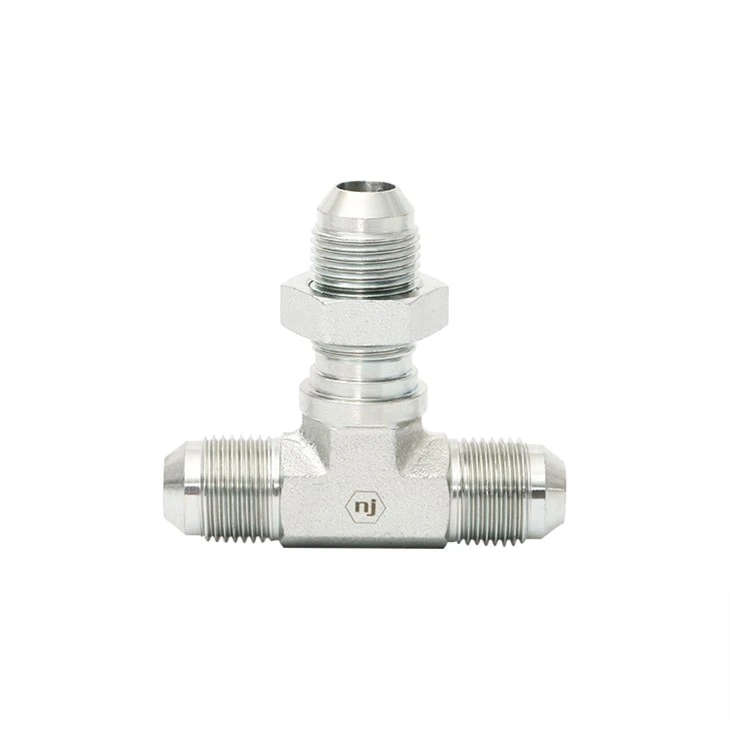

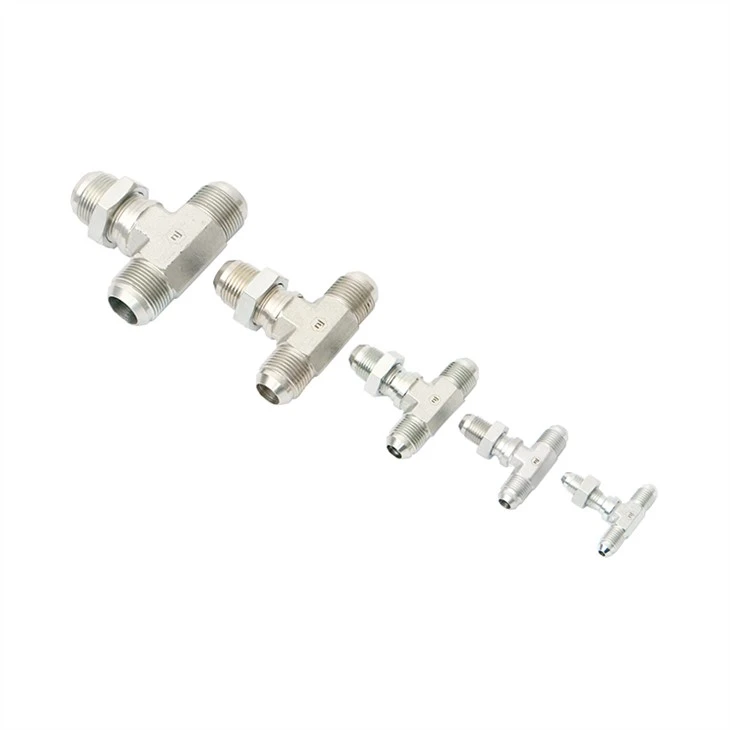

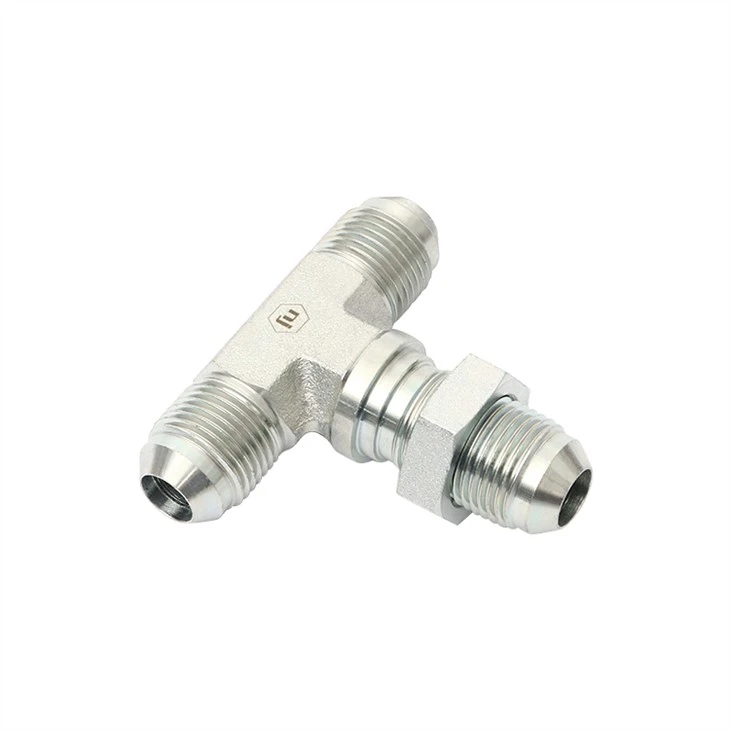

JIC Bulkhead Union Branch Tee with Locknut
Part Number:
2703-LN
Attributes:
Shape: Tee
Thread 1 Type: Male JIC
Compliance: SAE 070959
Thread 2 Type: Male JIC
Thread 3 Type: Male JIC
PART NO.SIZE | TUBE O.D. | B1 SAE 37 | B2 SAE 37 | B3 SAE 37 | B1 DRILL | B2 DRILL | B3 DRILL | M1 LGTH | M2 LGTH | L | Y |
2703-LN-03-03-03 | 3/16 | 3/8-24 | 3/8-24 | 3/8-24 | 0.125 | 0.125 | 0.125 | 0.94 | 0.94 | 1.50 | 0.438 |
2703-LN-04-04-04 | 1/4 | 7/16-20 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.172 | 0.97 | 0.97 | 1.59 | 0.438 |
2703-LN-04-04-06 | 1/4 | 7/16-20 | 7/16-28 | 9/16-18 | 0.172 | 0.172 | 0.297 | 1.08 | 1.08 | 1.81 | 0.562 |
2703-LN-05-05-05 | 5/16 | 1/2-20 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 0.234 | 1.06 | 1.06 | 1.72 | 0.562 |
2703-LN-06-06-06 | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 0.297 | 1.09 | 1.09 | 1.81 | 0.562 |
2703-LN-08-08-08 | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 0.391 | 1.36 | 1.36 | 2.11 | 0.750 |
2703-LN-10-10-10 | 5/8 | 7/8-14 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 0.484 | 1.56 | 1.56 | 2.39 | 0.875 |
2703-LN-12-12-12 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 0.609 | 1.78 | 1.78 | 2.67 | 1.062 |
2703-LN-12-12-16 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-5/16-12 | 0.609 | 0.609 | 0.844 | 1.89 | 1.89 | 2.80 | 1.312 |
2703-LN-14-14-14 | 7/8 | 1-3/16-12 | 1-3/16-12 | 1-3/16-12 | 0.719 | 0.719 | 0.719 | 1.92 | 1.92 | 2.80 | 1.312 |
2703-LN-16-16-16 | 1 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 0.844 | 1.94 | 1.94 | 2.80 | 1.312 |
2703-LN-20-20-20 | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 1.078 | 2.17 | 2.17 | 3.12 | 0.625 |
2703-LN-24-24-24 | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 1.312 | 2.34 | 2.34 | 3.42 | 1.875 |
Ningbo NJ Hydraulic Adapter Co., Ltd is the professional manufacturer of steel & stainless steel sae hydraulic fittings and adapters, including british and metric fittings.
Most of sae hydraulic fittings are in stock, so we can deliver stock orders within 7-15 working days, and we can also provide several free samples for testing before a trial order.
Degree flare tube fittings meet all design and performance requirements for 37-degree flare tube fittings in Standard J514 published by the Society of Automotive Engineers (SAE). This design was originally founded as a JIC (Joint Industrial) design, and was later adoped by the SAE to assure dimensional interchangeability between various manufacturers worldwide.
