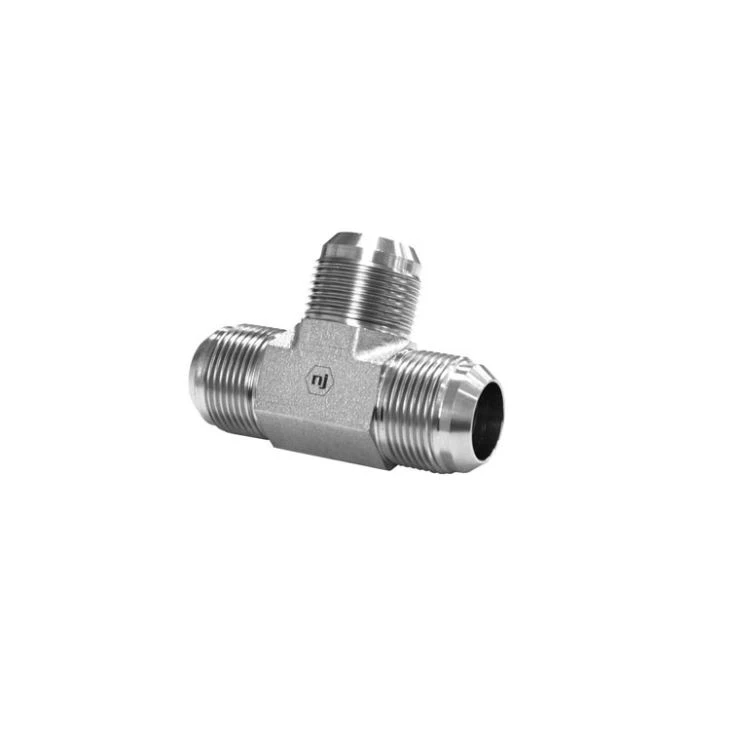

JIC Union Tee Tube Fitting
Thread 1 Type: Male JIC
Thread 2 Type: Male JIC
Thread 3 Type: Male JIC
Ningbo Nj Hydraulic Adapter Co., Ltd is one of the leading jic union tee tube fitting manufacturers and suppliers in China. Welcome to wholesale high quality products in stock here from our factory. Contact us for more details.
JIC Union Tee Tube Fitting
Part Number:
2603
Attributes:
Shape: Tee
Thread 1 Type: Male JIC
Compliance: SAE 070401
Thread 2 Type: Male JIC
Thread 3 Type: Male JIC
PART NO. SIZE | TUBE O.D. | B1 SAE 37 | B2 SAE 37 | B3 SAE 37 | B1 DRILL | B2 DIRLL | B3 DRILL | M1 LGTH | M2 LGTH | M3 LGTH | Y FLATS |
2603-02-02-02 | 1/8 | 5/16-24 | 5/16-24 | 5/16-24 | 0.062 | 0.062 | 0.062 | 0.77 | 0.77 | 0.77 | 0.438 |
2603-03-03-03 | 3/16 | 3/8-24 | 3/8-24 | 3/8-24 | 0.125 | 0.125 | 0.125 | 0.83 | 0.83 | 0.83 | 0.438 |
2603-04-04-04 | 1/4 | 7/16-20 | 7/16-20 | 7/16-20 | 0.172 | 0.172 | 0.172 | 0.89 | 0.89 | 0.89 | 0.438 |
2603-04-04-06 | 1/4 | 7/16-20 | 7/16-20 | 9/16-18 | 0.172 | 0.172 | 0.297 | 1.05 | 1.05 | 1.06 | 0.562 |
2603-05-05-04 | 5/16 | 1/2-20 | 1/2-20 | 7/16-20 | 0.234 | 0.234 | 0.172 | 0.95 | 0.95 | 0.95 | 0.562 |
2603-05-05-05 | 5/16 | 1/2-20 | 1/2-20 | 1/2-20 | 0.234 | 0.234 | 0.234 | 0.95 | 0.95 | 0.95 | 0.562 |
2603-06-06-04 | 3/8 | 9/16-18 | 9/16-18 | 7/16-20 | 0.297 | 0.297 | 0.172 | 1.06 | 1.06 | 1.05 | 0.562 |
2603-06-06-06 | 3/8 | 9/16-18 | 9/16-18 | 9/16-18 | 0.297 | 0.297 | 0.297 | 1.06 | 1.06 | 1.06 | 0.562 |
2603-06-06-08 | 3/8 | 9/16-18 | 9/16-18 | 3/4-16 | 0.297 | 0.297 | 0.391 | 1.14 | 1.14 | 1.25 | 0.750 |
2603-06-06-10 | 3/8 | 9/16-18 | 9/16-18 | 7/8-14 | 0.297 | 0.297 | 0.484 | 1.22 | 1.22 | 1.45 | 0.875 |
2603-08-06-06 | 1/2 | 3/4-16 | 3/4-16 | 9/16-18 | 0.391 | 0.297 | 0.297 | 1.25 | 1.25 | 1.14 | 0.750 |
2603-08-08-06 | 1/2 | 3/4-16 | 3/4-16 | 9/16-18 | 0.391 | 0.391 | 0.297 | 1.25 | 1.25 | 1.14 | 0.750 |
2603-08-08-08 | 1/2 | 3/4-16 | 3/4-16 | 3/4-16 | 0.391 | 0.391 | 0.391 | 1.25 | 1.25 | 1.25 | 0.750 |
2603-08-08-10 | 1/2 | 3/4-16 | 3/4-16 | 7/8-14 | 0.391 | 0.391 | 0.484 | 1.33 | 1.33 | 1.45 | 0.875 |
2603-08-08-12 | 1/2 | 3/4-16 | 3/4-16 | 1-1/16-12 | 0.391 | 0.391 | 0.609 | 1.42 | 1.42 | 1.66 | 1.062 |
2603-10-08-08 | 5/8 | 7/8-14 | 7/8-14 | 3/4-16 | 0.484 | 0.391 | 0.391 | 1.45 | 1.45 | 1.33 | 0.875 |
2603-10-10-06 | 5/8 | 7/8-14 | 7/8-14 | 9/16-18 | 0.484 | 0.484 | 0.297 | 1.45 | 1.45 | 1.22 | 0.875 |
2603-10-10-08 | 5/8 | 7/8-14 | 7/8-14 | 3/4-16 | 0.484 | 0.484 | 0.391 | 1.45 | 1.45 | 1.33 | 0.875 |
2603-10-10-10 | 5/8 | 7/8-14 | 7/8-14 | 7/8-14 | 0.484 | 0.484 | 0.484 | 1.45 | 1.45 | 1.45 | 0.875 |
2603-10-10-12 | 5/8 | 7/8-14 | 7/8-14 | 1-1/16-12 | 0.484 | 0.484 | 0.609 | 1.54 | 1.54 | 1.66 | 1.062 |
2603-12-10-10 | 3/4 | 1-1/16-12 | 1-1/16-12 | 7/8-14 | 0.609 | 0.484 | 0.484 | 1.66 | 1.66 | 1.54 | 1.062 |
2603-12-12-06 | 3/4 | 1-1/16-12 | 1-1/16-12 | 9/16-18 | 0.609 | 0.609 | 0.297 | 1.66 | 1.66 | 1.31 | 1.062 |
2603-12-12-08 | 3/4 | 1-1/16-12 | 1-1/16-12 | 3/4-16 | 0.609 | 0.609 | 0.391 | 1.66 | 1.66 | 1.42 | 1.062 |
2603-12-12-10 | 3/4 | 1-1/16-12 | 1-1/16-12 | 7/8-14 | 0.609 | 0.609 | 0.484 | 1.66 | 1.66 | 1.54 | 1.062 |
2603-12-12-12 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-1/16-12 | 0.609 | 0.609 | 0.609 | 1.66 | 1.66 | 1.66 | 1.062 |
2603-12-12-16 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-5/16-12 | 0.609 | 0.609 | 0.844 | 1.76 | 1.76 | 1.81 | 1.312 |
2603-12-12-20 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1-5/8-12 | 0.609 | 0.609 | 1.078 | 1.97 | 1.97 | 2.06 | 1.625 |
2603-14-14-14 | 7/8 | 1-3/16-12 | 1-3/16-12 | 1-3/16-12 | 0.719 | 0.719 | 0.719 | 1.80 | 1.80 | 1.80 | 1.312 |
2603-16-12-12 | 1 | 1-5/16-12 | 1-5/16-12 | 1-1/16-12 | 0.844 | 0.609 | 0.609 | 1.81 | 1.81 | 1.76 | 1.312 |
2603-16-12-16 | 1 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.609 | 0.844 | 1.81 | 1.81 | 1.81 | 1.312 |
2603-16-16-12 | 1 | 1-5/16-12 | 1-5/16-12 | 1-1/16-12 | 0.844 | 0.844 | 0.609 | 1.81 | 1.81 | 1.76 | 1.312 |
2603-16-16-16 | 1 | 1-5/16-12 | 1-5/16-12 | 1-5/16-12 | 0.844 | 0.844 | 0.844 | 1.81 | 1.81 | 1.81 | 1.312 |
2603-20-20-12 | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-1/16-12 | 1.078 | 1.078 | 0.609 | 2.06 | 2.06 | 1.76 | 1.625 |
2603-20-20-16 | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-5/16-12 | 1.078 | 1.078 | 0.844 | 2.06 | 2.06 | 1.81 | 1.625 |
2603-20-20-20 | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1-5/8-12 | 1.078 | 1.078 | 1.078 | 2.06 | 2.06 | 1.97 | 1.625 |
2603-24-24-24 | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1-7/8-12 | 1.312 | 1.312 | 1.312 | 2.33 | 2.33 | 2.01 | 1.875 |
2603-32-32-32 | 2 | 2-1/2-12 | 2-1/2-12 | 2-1/2-12 | 1.781 | 1.781 | 1.781 | 3.06 | 3.06 | 2.06 | 2.500 |
