NPTF Female Fitting

Thread 1 Type: Female Pipe
Compliance: SAE# 140231
Thread 2 Type: Female Pipe Swivel

Send Inquiry

Chat Now

Ningbo Nj Hydraulic Adapter Co., Ltd is one of the leading nptf female fitting manufacturers and suppliers in China. Welcome to wholesale high quality products in stock here from our factory. Contact us for more details.

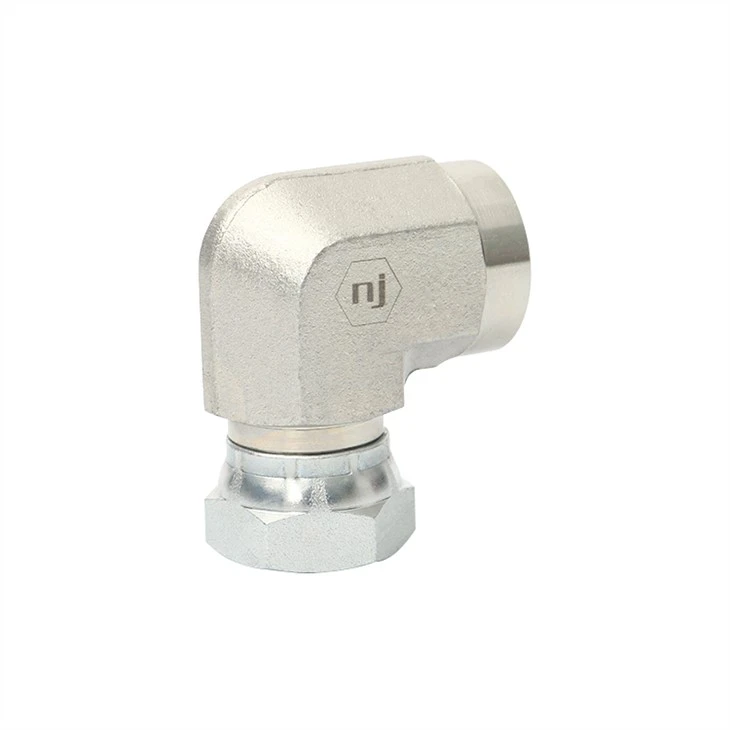

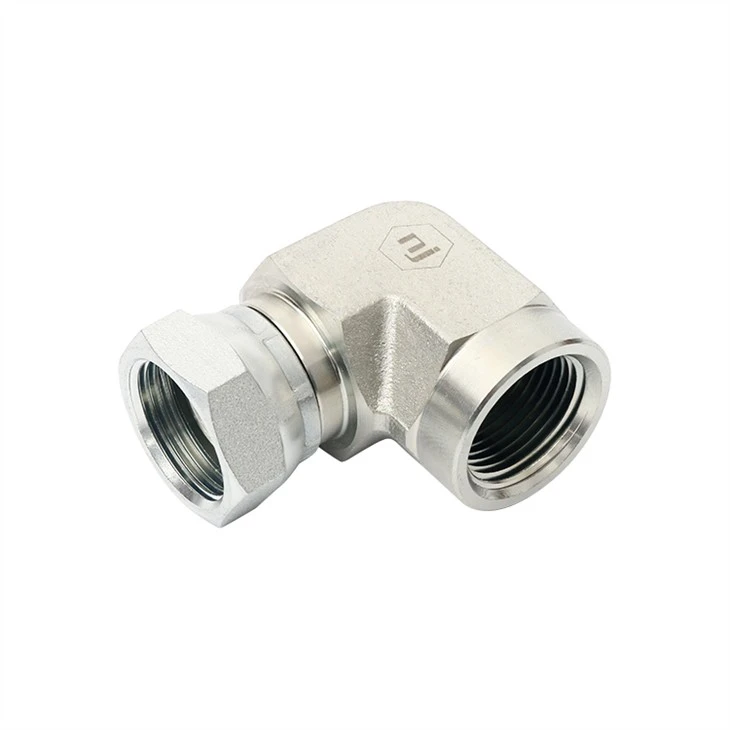

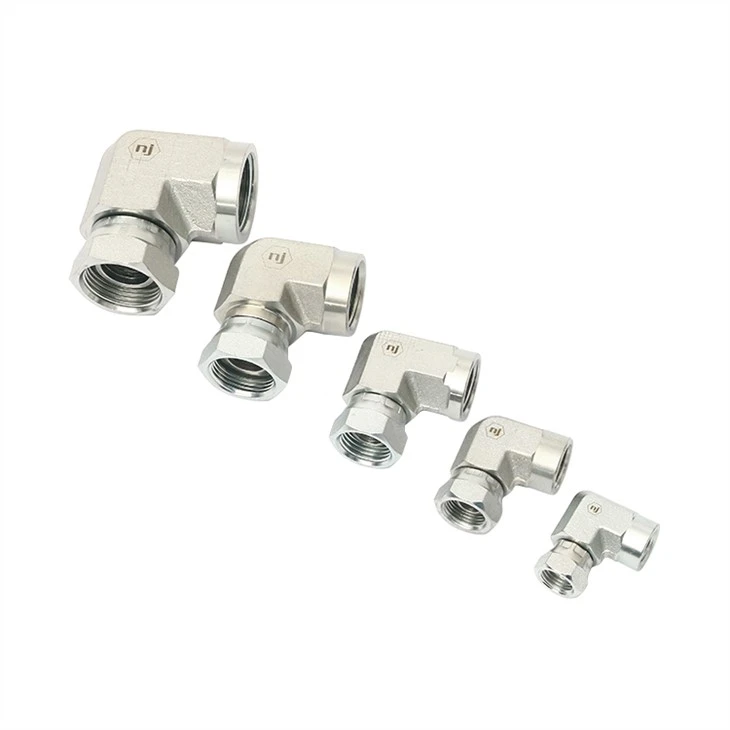

NPTF Female Fitting

Part Number:

1502

Attributes:

Material: Steel

Shape: 90 Elbow

Thread 1 Type: Female Pipe

Compliance: SAE# 140231

Thread 2 Type: Female Pipe Swivel

1502

PART NO	NPTF	NPSM	Y FLATS
1502-02-02	1/8-27	1/8-27	0.562
1502-02-04	1/8-27	1/4-18	0.562
1502-04-02	1/4-18	1/8-27	0.75
1502-04-04	1/4-18	1/4-18	0.75
1502-04-06	1/4-18	3/8-18	0.75
1502-06-04	3/8-18	1/4-18	0.875
1502-06-06	3/8-18	3/8-18	0.875
1502-06-08	3/8-18	1/2-18	0.875
1502-08-04	3/4-16	1/4-18	1.062
1502-08-06	1/2-14	3/8-18	1.062
1502-08-08	1/2-14	1/2-14	1.062
1502-08-12	1/2-14	3/4-14	1.062
1502-12-08	3/4-14	1/2-14	1.312
1502-12-12	3/4-14	3/4-14	1.312
1502-12-16	3/4-14	1-11 1/2	1.312
1502-16-12	1-11 1/2	3/4-14	1.625
1502-16-16	1-11 1/2	1-11 1/2	1.625
1502-20-16	1 1/4-11 1/2	1-11 1/2	1.875
1502-20-20	1 1/4-11 1/2	1 1/4-11 1/2	0.875
1502-24-24	1 1/2-11 1/2	1 1/2-11 1/2	2.562
1502-32-32	2-11 1/2	2-11 1/2	2.812
